<< Click to Display Table of Contents >> Navigation:  Chapter 5  Boring/Wells > Importing Data > WinLoG Version 3 and 4 Data > WinLoG Version 4 Well Macros

Well macros can be imported from WinLoG version 4 by selecting File > Import > WinLoG , WinFence and WinSieve Data > Well Macros. The Import Wizard form below will be displayed. You then need to select the WinLoG version 4 "winlog.mdb" file containing the macros and press the Next button.





The form will then display a list of the well macros contained in the database file as shown below. On this form you can select which macros to import and then click the Next button.





The form will then display any macros that conflict with the ones already in GaeaSynergy and allow you to resolve the conflicts. If there are no conflicts or is they have been resolved, click the Next button to start the import.

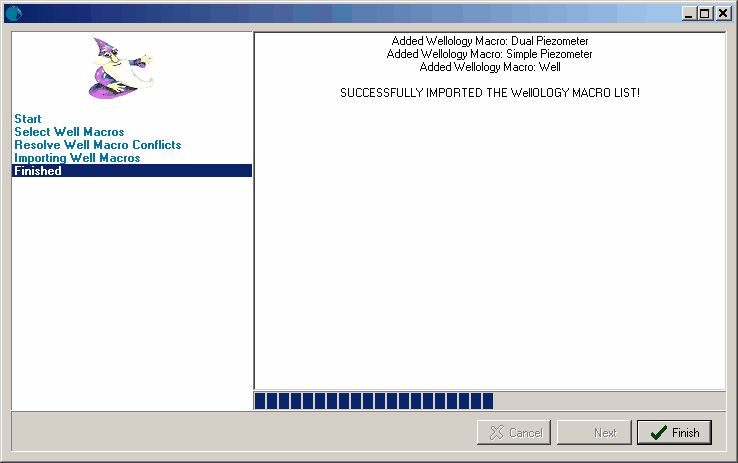

After the macros have been imported, click the Finish button.
